PRODUCT DETAILS

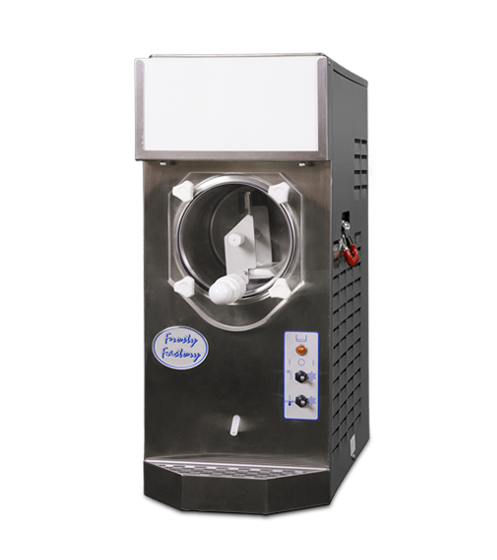

Model # 117A

Features

• Compact Size - Saving Valuable Counter Space
• 3 1/2 Quart Cylinder - 12 Quart Hopper
• High Production - Up to 115 Ten Ounce Drinks per Hour
• Lighted Flavor Sign - Draws Attention to Product
• Stand-by Switch - Refrigerates Mix Overnight
• Air Cooled

Specifications  (Download Spec Sheet)

• Height: 25 in (64 cm)
• Width: 11 in (28 cm)
• Depth: 21 in (53 cm)
• Weight: 110 lbs (50 kg)
• Legs: 1 in (2 1/2 cm) - Optional 4 in (10 cm)
• Shipping Size:
•      14"W X 24"D X 31"H
•      36 cm W X 61 cm D X 79 cm H
• Shipping Volume: 6 cu ft (1/6 cu M)
• Shipping Weight: 130 lbs (59 kg)
• Voltage: 115 - Optional 230
• Hertz: 60 - Optional 50
• Phase: 1
• Cooling: Air Cooled
• Air Clearance:
•      Rear: 6 in (15 cm)
•      Sides: 12 in (30 cm)
• Hopper Capacity: 12 qts (11 1/3 ltr)
• Cylinder Capacity: 3 1/2 qts (3 1/4 ltr)
• Amperage Draw: 12 amps
• Circuit Breaker: 20 amp
• Compressor: 3/4 hp
• Refrigerant: R404A

(Download Service Manual)

(Download "Will Serve" Chart)

(Download Warranty)
